混凝土攪拌機的十大結構系統體系構成
來源：http://www.wishnailspa.com/日期：2022-05-30
概述：混凝土攪拌機由很多部分組成，大致可分為十個系統：底盤系統、液壓傳動系統、攪拌罐、卸料系統、清洗系統、副車架、操作系統、托輪系統、上

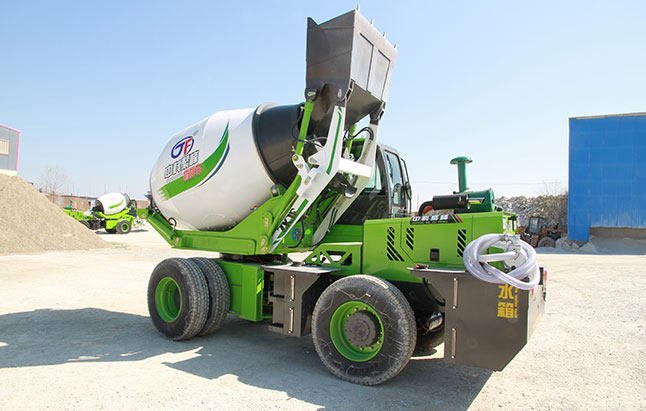

混凝土攪拌機由很多部分組成，大致可分為十個系統：底盤系統、液壓傳動系統、攪拌罐、卸料系統、清洗系統、副車架、操作系統、托輪系統、上料系統、電路系統由十部分組成。下面小編就給大家詳細介紹一下。
The concrete mixer consists of many parts, which can be roughly divided into ten systems: chassis system, hydraulic transmission system, mixing tank, unloading system, cleaning system, subframe, operating system, supporting wheel system, feeding system and circuit system. Let's give you a detailed introduction.
1、底盤系統：混凝土攪拌機的主要部件，整個混凝土攪拌機的運輸由現場實現。
1. Chassis system: the main part of the concrete mixer. The transportation of the whole concrete mixer is realized on site.
2、托輥系統：攪拌罐后部與副車架連接的部分，主要起到支撐筒體的作用。
2. Idler system: the part connecting the rear part of the mixing tank with the subframe, which mainly plays the role of supporting the cylinder.
3、攪拌罐體：攪拌筒是整個混凝土攪拌機的關鍵部件，是儲存混凝土的容器，對防止混凝土凝固和離析起著決定性的作用。管體內有葉片，主要起攪拌和引導物料的作用。
3. Mixing tank body: the mixing tank is the key component of the whole concrete mixer and the container for storing concrete, which plays a decisive role in preventing concrete solidification and segregation. There are blades in the tube, which are mainly used to stir and guide materials.
4、卸料系統：主要由主卸料槽、副卸料槽、鎖桿等組成，副卸料槽起到延長主卸料槽的作用。
4. Discharge system: it is mainly composed of main discharge chute, auxiliary discharge chute, locking rod, etc. the auxiliary discharge chute plays the role of extending the main discharge chute.
5、電路系統：主要是指整個電路，包括車輛的尾燈、側示廓燈、廊燈、冷卻風扇電機等。
5. Circuit system: mainly refers to the whole circuit, including the tail lamp, side clearance lamp, corridor lamp, cooling fan motor, etc.
6、副車架：混凝土攪拌機的副車架是主要的承重部件，運行時的載荷幾乎全部通過它支撐并傳遞到底盤上?；炷翑嚢铏C(jī)的副車架還起到減輕路面顛簸和減速造成的沖擊載荷的作用。
6. Subframe: the subframe of the concrete mixer is the main load-bearing component, and almost all the load during operation is supported by it and transmitted to the chassis. The subframe of the concrete mixer also reduces the impact load caused by road bumps and deceleration.
7、操作系統：
混凝土攪拌機的操作系統由控制器、聯動軸、軟軸和連桿機構組成，主要控制攪拌筒的轉速和轉動方向。
7. Operating system: the operating system of the concrete mixer is composed of a controller, a linkage shaft, a flexible shaft and a connecting rod mechanism, which mainly controls the speed and direction of rotation of the mixing drum.
8、液壓傳動系統：取力器取出的發動機動力轉換成液壓能（排量和壓力），再由電動機輸出成機械能（轉速和扭矩），為汽車的轉動提供動力。攪拌筒。
8. Hydraulic transmission system: the engine power taken out by the power takeoff is converted into hydraulic energy (displacement and pressure), and then output into mechanical energy (speed and torque) by the motor to provide power for the rotation of the vehicle. Mixing drum.
9、進料系統：主要由進料斗和支架組成。進料斗因沖擊磨損大，物料要求耐磨性好。支架主要起到減小沖擊力的作用。
9. Feeding system: mainly composed of feeding hopper and support. The feed hopper is subject to great impact wear, and the materials are required to have good wear resistance. The support is mainly used to reduce the impact force.
10、清洗系統：清洗系統主要由壓力水箱、水槍、水管、閥門等組成，采用氣壓供水，主要作用是裝料后沖洗料斗，沖洗攪拌筒和卸料后的卸料槽，防止混凝土粘連。
10. Cleaning system: the cleaning system is mainly composed of pressure water tank, water gun, water pipe, valve, etc. it uses pneumatic water supply. Its main function is to wash the hopper after loading, the mixing drum and the discharge tank after unloading, so as to prevent concrete adhesion.
混凝土攪拌機的十大結構系統體系構成相關內容就到這里了，您可以關注我們網站
www.wishnailspa.com，查看更多關于該設備的信息！
That's all for the ten structural systems of concrete mixer. You can follow our website www.zkhntjbj COM, see more information about this device!
