我們?nèi)粘Ｖ幸?jiàn)到的田螺車就是所稱為攪拌車，下面為大家介紹一下該攪拌車的整體吧，下面從攪拌車液壓驅動系統、電氣系統與供水系統的說明開始了解起來吧。

The Tianluo truck we see in our daily life is called the mixer truck. Now let's introduce the whole of the mixer truck. Let's start with the description of the hydraulic drive system, electrical system and water supply system of the mixer truck.

液壓驅動系統

Hydraulic drive system

液壓系統是由包括減速機、變量柱塞泵和馬達等所組成的閉式回路。

The hydraulic system is a closed circuit composed of reducer, variable piston pump and motor.

減速機加注的潤滑油為重載荷車輛齒輪油，牌號GL-5(GB13895-1992)粘度等級85W/90(按GB/T14906-1994);在低溫環境應使用殼牌施倍力(Spirax)ASX潤滑油。

The lubricating oil filled in the reducer is heavy-duty vehicle gear oil, brand GL-5 (gb13895-1992), viscosity grade 85w/90 (according to gb/t14906-1994); In low temperature environment, shell Spirax ASX lubricant should be used.

為了滿足低的啟動溫度(低極限溫度)要求，必要時請采用預熱系統，當環境溫度低于-5℃時，不論采用何種潤滑油等級，少預熱10分鐘。

In order to meet the requirements of low starting temperature (low limit temperature), please use preheating system if necessary. When the ambient temperature is lower than -5 ℃, no matter what grade of lubricating oil is used, preheat for at least 10 minutes.

系統具有溫度自動保護裝置。在工作溫度超過65℃時溫控開關自動打開，冷卻器開始工作，當工作溫度低于60℃時，溫控開關自動關閉，冷卻器則停止工作。

The system has automatic temperature protection device. When the working temperature exceeds 65 ℃, the temperature control switch automatically opens and the cooler starts to work. When the working temperature is lower than 60 ℃, the temperature control switch automatically closes and the cooler stops working.

電氣系統

electrical system

攪拌車的電器系統主要是冷卻風扇控制部分。

The electrical system of the mixer truck is mainly the cooling fan control part.

冷卻風扇的起停由溫度開關自動控制，溫度高于65度時風扇啟動，低于60度時風扇停止。溫度開關位于冷卻器上，繼電器與保險片在蓄電池旁電源繼電器盒內。

The start and stop of the cooling fan is automatically controlled by the temperature switch. The fan starts when the temperature is higher than 65 degrees and stops when the temperature is lower than 60 degrees. The temperature switch is located on the cooler, and the relay and fuse are in the power relay box next to the battery.

供水系統

Water supply system

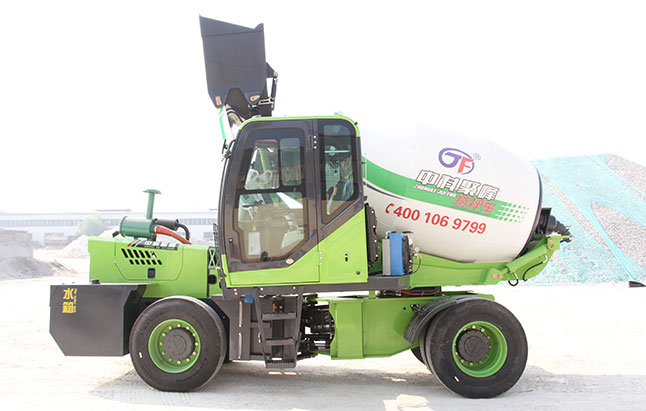

自動上料攪拌機供水系統由壓力水箱、水槍、水管、閥等組成。水箱的容積約為380升，采用氣壓供水。主要作用是在裝完料后沖洗料斗及出料完畢后沖洗拌筒、卸料槽，防止混凝土粘結。在溫度低于零攝氏度時，沖洗完畢后，應排盡水箱、水管內的存水，防止凍結。

The water supply system of automatic feeding mixer is composed of pressure water tank, water gun, water pipe, valve, etc. The volume of the water tank is about 380 liters, and pneumatic water supply is adopted. The main function is to wash the hopper after loading and the mixing drum and discharge chute after discharging, so as to prevent the concrete from sticking. When the temperature is lower than zero degrees Celsius, the water stored in the water tank and water pipe should be drained after washing to prevent freezing.

以上就是今天為大家介紹的關于問題以及注意事項的全部?jī)?nèi)容，希望對大家能有所幫助，想要了解更多內容可以電話聯系我們或者關注我們的網站http://www.wishnailspa.com，我們的工作人員會及時與您取得聯系。

The above is all about the problems and precautions introduced to you today. I hope it can help you. If you want to know more, you can contact us by phone or follow our website http://www.wishnailspa.com , our staff will contact you in time.
